Compare Demers ambulance models
Chassis
| Model | Ford E350 Cutaway |
| Drivetrain | 2x4 |
| Type | Gas |
| Engine | 7.3L V8 PFI |
| Max. horsepower | 325 hp @ 3,750 rpm |
| Max. torque | 450 lb.-ft.@ 3,750 rpm |
| Transmission | TorqShift® 6-Speed Automatic |
| GVWR | 12,500 lbs (5,682 kg) |
| Max payload capacity (completed vehicle) | 2,645 lbs (1,200 kg) |

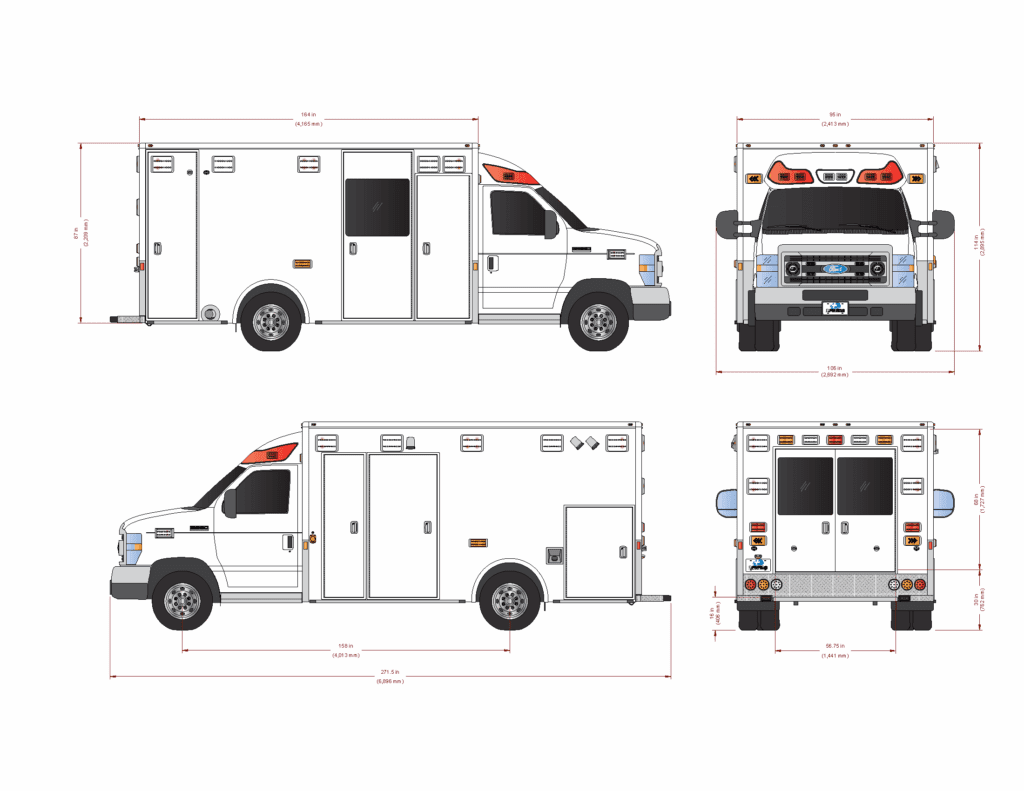

Overall dimensions*
| Wheelbase | 158 in (4,013 mm) |
| Module length | 164 in (4,166 mm) |
| Overall length | 271.5 in (6,896 mm) |
| Width - mirrors excluded | 95 in (2,413 mm) |
| Width - mirrors included | 106 in (2,692 mm) |
| Exterior height | 114 in (2,895 mm) without suspension 116 in (2,946 mm) with suspension |
| Loading height | 30 in (762 mm) |
| Rear step height | 16 in (406 mm) |
| Interior headroom | 68 in (1,727 mm) |
| Shoulder room (cab) | 68.1 in (≈ 1,730 mm) |
| Max. legroom (cabine) | 42.1 in (≈ 1,069 mm) |
Vehicle specs
| Suspensions | OEM MORryde as an option at the back |
| Mirrors | Electrically adjustable heated flat mirrors with heated convex (Velvac 2020 Deluxe) |
| Emergency lighting | Whelen Standard series |
| Exterior lighting | Whelen Standard series |
| Siren | Siren amplifiers (100 watt) with 4 tones and P/A microphone |
| Aerodynamic roof | Available |
Front cab configuration
| Seating capacity (module) | Up to 4 |
| Safety belts | IMMI 4-point safety belts |
| Attendant seat | EVS certified thermoformed attendant seat Armrests and child safety device as an option |
| Paramedics seating | Curbside: Squad bench (2 seats) Mobility package (1 seat as an option) Streetside: CPR seat |
| Cot configuration | Universal floor configuration (universal anchoring plates for standard positions included. no floor cutouts & no cot fastener included) Stryker systems floor plate and pre-wiring as an option Ferno cot fastener as an option |
| Action area console (ECC) | 4.3" digital touch screen Auxiliary console on curbside as an option |
| Oxygen | Universal horizontal holder for main oxygen cylinder type "K" or "M" under partition accessible from curb side C1 door 2 oxygen outlets included "D" Portable oxygen cylinder |
| Suction | Thomas suction pump |
| Lighthing | Eight (8) LED dome lights with four intensity settings |
| Medical cabinets | Aluminum extrusion structure Self-latching windows LED strip lighting |
Care module configuration
| Seating capacity (module) | Up to 4 |
| Safety belts | IMMI 4-point safety belts |
| Attendant seat | EVS certified thermoformed attendant seat Armrests and child safety device as an option |
| Paramedics seating | Curbside: Squad bench (2 seats) Mobility package (1 seat as an option) Streetside: CPR seat |
| Cot configuration | Universal floor configuration (universal anchoring plates for standard positions included. no floor cutouts & no cot fastener included) Stryker systems floor plate and pre-wiring as an option Ferno cot fastener as an option |
| Action area console (ECC) | 4.3" digital touch screen Auxiliary console on curbside as an option |
| Oxygen | Universal horizontal holder for main oxygen cylinder type "K" or "M" under partition accessible from curb side C1 door 2 oxygen outlets included "D" Portable oxygen cylinder |
| Suction | Thomas suction pump |
| Lighthing | Eight (8) LED dome lights with four intensity settings |
| Medical cabinets | Aluminum extrusion structure Self-latching windows LED strip lighting |
Electrical system
| Multiplex | MMC |
| Inverter | Pre-wiring for 1,000W power inverter/charger Xantrex Freedom HW 1000 Inverter as an option |
| 12V DC outlets | 4 1 addtional outlet as an option |
| 120V AC hospital grade outlets | 3 1 addtional outlet as an option |
| Shoreline | "Yellow 15-amp Kusmault super auto-eject with indicator Yellow 20-amp Kusmault Super auto-eject with indicator as an option" |
Climate control system
| Insulation | Standard |
| Heating | Separated heater unit |
| A/C | Separate air conditioning unit |
| Exhaust | Exhaust fan for contaminated air (2) |
| Carbon monoxyde detector | Standard |
Exterior configuration
| Streetside compartments | S1 for main oxygen cylinder access S2 for equipment storage S3 for spare tire and equipment storage |
| Curbside compartments | C1 with batteries and ALS compartment access C2 for patient compartment access, with flush-mounted, automotive-style window C3 backboard compartment |
Performance & Technology
| Bluetooth diagnostic tool | Standard |
| Day/Night mode | Available |
| Smooth pattern | Available |
| Anti-idle feature | EcoSmart available |
| Data recorder (AVL) | Standard |
| Exterior camera | Available |
| Interior camera | Available |
| Anti-theft | Standard |
| Ultra sound whistle for animals | Available |
| Lug nut indicators | Available |
| Rear digital clock | Available |
Chassis
| Model | Ford E350 Cutaway |
| Drivetrain | 2x4 |
| Type | Gas |
| Engine | 7.3L V8 PFI |
| Max. horsepower | 325 hp @ 3,750 rpm |
| Max. torque | 450 lb.-ft.@ 3,750 rpm |
| Transmission | TorqShift® 6-Speed Automatic |
| GVWR | 12,500 lbs (5,682 kg) |
| Max payload capacity (completed vehicle) | 2,645 lbs (1,200 kg) |
Overall dimensions*
| Wheelbase | 158 in (4,013 mm) |
| Module length | 164 in (4,166 mm) |
| Overall length | 271.5 in (6,896 mm) |
| Width - mirrors excluded | 95 in (2,413 mm) |
| Width - mirrors included | 106 in (2,692 mm) |
| Exterior height | 114 in (2,895 mm) without suspension 116 in (2,946 mm) with suspension |
| Loading height | 30 in (762 mm) |
| Rear step height | 16 in (406 mm) |
| Interior headroom | 68 in (1,727 mm) |
| Shoulder room (cab) | 68.1 in (≈ 1,730 mm) |
| Max. legroom (cabine) | 42.1 in (≈ 1,069 mm) |
Vehicle specs
| Suspensions | OEM MORryde as an option at the back |
| Mirrors | Electrically adjustable heated flat mirrors with heated convex (Velvac 2020 Deluxe) |
| Emergency lighting | Whelen Standard series |
| Exterior lighting | Whelen Standard series |
| Siren | Siren amplifiers (100 watt) with 4 tones and P/A microphone |
| Aerodynamic roof | Available |
Front cab configuration
| Seating capacity (module) | Up to 4 |
| Safety belts | IMMI 4-point safety belts |
| Attendant seat | EVS certified thermoformed attendant seat Armrests and child safety device as an option |
| Paramedics seating | Curbside: Squad bench (2 seats) Mobility package (1 seat as an option) Streetside: CPR seat |
| Cot configuration | Universal floor configuration (universal anchoring plates for standard positions included. no floor cutouts & no cot fastener included) Stryker systems floor plate and pre-wiring as an option Ferno cot fastener as an option |
| Action area console (ECC) | 4.3" digital touch screen Auxiliary console on curbside as an option |
| Oxygen | Universal horizontal holder for main oxygen cylinder type "K" or "M" under partition accessible from curb side C1 door 2 oxygen outlets included "D" Portable oxygen cylinder |
| Suction | Thomas suction pump |
| Lighthing | Eight (8) LED dome lights with four intensity settings |
| Medical cabinets | Aluminum extrusion structure Self-latching windows LED strip lighting |
Care module configuration
| Seating capacity (module) | Up to 4 |
| Safety belts | IMMI 4-point safety belts |
| Attendant seat | EVS certified thermoformed attendant seat Armrests and child safety device as an option |
| Paramedics seating | Curbside: Squad bench (2 seats) Mobility package (1 seat as an option) Streetside: CPR seat |
| Cot configuration | Universal floor configuration (universal anchoring plates for standard positions included. no floor cutouts & no cot fastener included) Stryker systems floor plate and pre-wiring as an option Ferno cot fastener as an option |
| Action area console (ECC) | 4.3" digital touch screen Auxiliary console on curbside as an option |
| Oxygen | Universal horizontal holder for main oxygen cylinder type "K" or "M" under partition accessible from curb side C1 door 2 oxygen outlets included "D" Portable oxygen cylinder |
| Suction | Thomas suction pump |
| Lighthing | Eight (8) LED dome lights with four intensity settings |
| Medical cabinets | Aluminum extrusion structure Self-latching windows LED strip lighting |
Electrical system
| Multiplex | MMC |
| Inverter | Pre-wiring for 1,000W power inverter/charger Xantrex Freedom HW 1000 Inverter as an option |
| 12V DC outlets | 4 1 addtional outlet as an option |
| 120V AC hospital grade outlets | 3 1 addtional outlet as an option |
| Shoreline | "Yellow 15-amp Kusmault super auto-eject with indicator Yellow 20-amp Kusmault Super auto-eject with indicator as an option" |
Climate control system
| Insulation | Standard |
| Heating | Separated heater unit |
| A/C | Separate air conditioning unit |
| Exhaust | Exhaust fan for contaminated air (2) |
| Carbon monoxyde detector | Standard |
Exterior configuration
| Streetside compartments | S1 for main oxygen cylinder access S2 for equipment storage S3 for spare tire and equipment storage |
| Curbside compartments | C1 with batteries and ALS compartment access C2 for patient compartment access, with flush-mounted, automotive-style window C3 backboard compartment |
Performance & Technology
| Bluetooth diagnostic tool | Standard |
| Day/Night mode | Available |
| Smooth pattern | Available |
| Anti-idle feature | EcoSmart available |
| Data recorder (AVL) | Standard |
| Exterior camera | Available |
| Interior camera | Available |
| Anti-theft | Standard |
| Ultra sound whistle for animals | Available |
| Lug nut indicators | Available |
| Rear digital clock | Available |
Displayed specifications are subject to change without notice and may vary based on the options selected by the customer.
